The Mini Scorpio Stab V builds on the legacy of its full-sized counterpart, featuring advanced gyros, mechanics, and software to deliver exceptional stabilization in a smaller, lighter package. With its water-resistant design, it operates seamlessly in humidity or rain, ensuring reliable performance in any conditions.
Operational Modes
Wheels
Precise control over the gimbal’s pan, tilt, and roll axes, allowing for smooth, accurate movements and fine-tuned adjustments during both static and dynamic shots.
Handheld
The handheld kit features an external gyro that allows the operator to control the gimbal like a traditional shoulder-mounted camera. It mirrors the operator’s movements, offering intuitive, responsive control for dynamic, handheld shots.
Panbar
The Pan Bar allows the operator to control the gimbal like a traditional fluid head, providing precise pan, tilt, and roll adjustments for smooth, stable shots from a distance.
Broadcast Desk
Broadcast content needed
Optional Extras

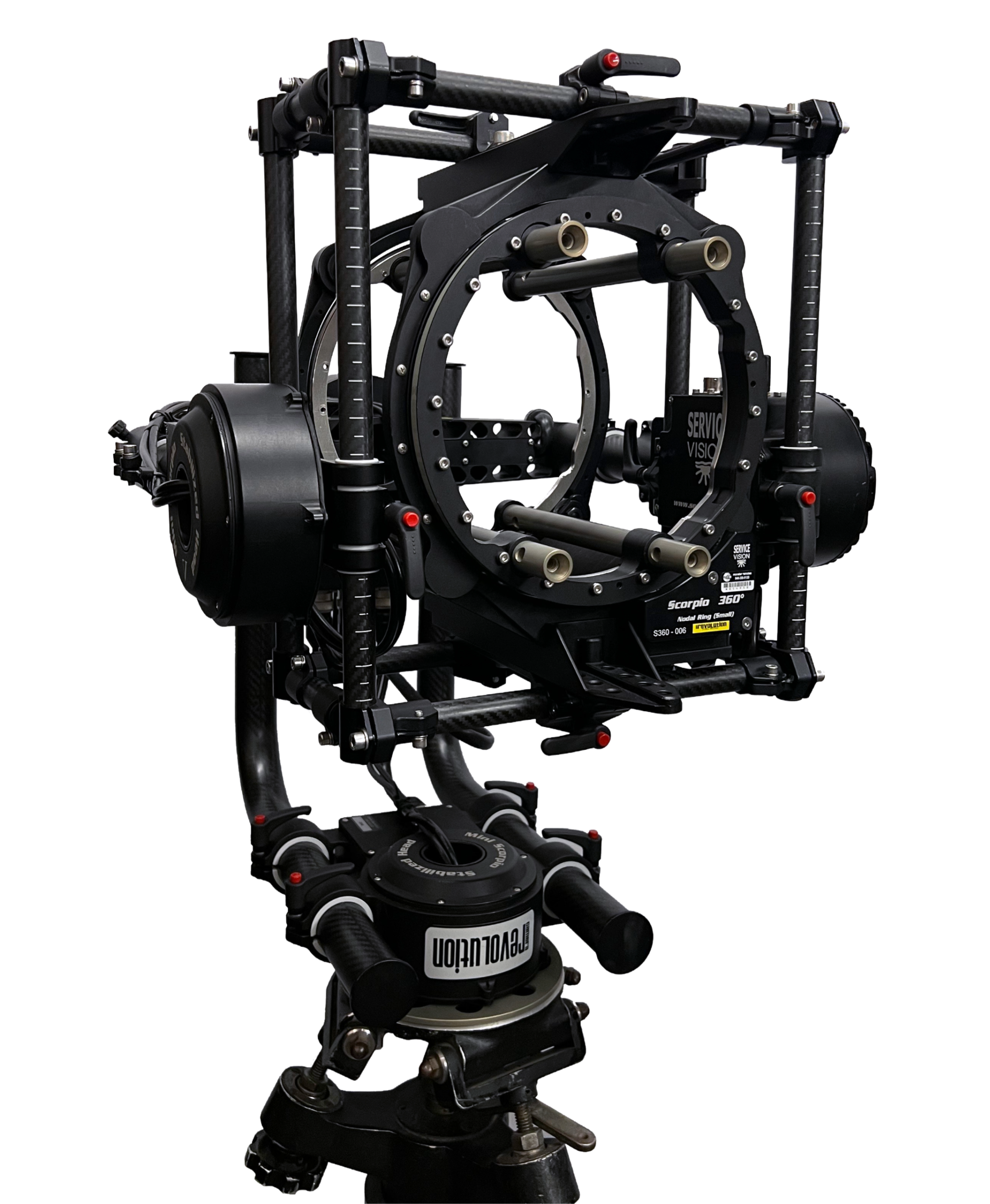

360 Nodal Ring
360-degree Nodal Ring: Features a slip ring design that enables continuous roll while keeping the camera and accessories powered through the head. With true nodal positioning, it delivers smooth, uninterrupted movement for the most dynamic of shots.
Spring Rig
Our range of spring rigs are designed to stabilize lateral movement, delivering smooth, controlled motion in dynamic shooting environments, such as tracking vehicles.
Wireless Control
Our wireless lens control systems provide remote adjustment of focus, iris, and zoom, along with remote turnover capabilities.
Wireless Video
We offer a range of wireless video solutions that provide reliable, high-quality transmission for seamless on-set monitoring.
CineFlip
Replaces the cranes levelling head, allowing the gimbal to quickly and switch between Underslung, Overslung, and Matrix positions.
Gyromotion Levelling Head
The Levelling Head by Gyro Motion: A crane levelling head that can also use its high-power actuator to quickly and seamlessly move the gimbal between Underslung, Overslung, and Matrix positions.
Servicevision Levelling Head
Service Vision Levelling Head: A crane levelling head that can quickly and seamlessly move the gimbal between Underslung, Overslung, and Matrix positions.
Features
- Power for all film and video cameras.
- Power supply for Scorpio Focus or other popular Lens Control.
- Three control systems are available: Hand wheels, Joystick, Pan Bar(JDR).
- Programmable limits, damping and speed adjustment for all axes.
- Back PAN: ON or OFF keeping the same level of stabilization.
- Real Horizon.
- Weather-resistant design.
- Memorization capacity in all axis even in Stabilized mode.
- Vibration generator with different frequency levels available.
CONFIGURATION​​
Underslung
The head is mounted under the rigged platform allowing for low-angle shots that are close to the ground.
Overslung
The head is mounted above the rigged platform for added lens hight.
Matrix Mode
The head is mounted at a 90-degree angle to the rigged platform, allowing for easier access to tight spaces. In this mode, you have full tilt movement but reduced pan.
