The Maximus 7 is a 4-axis stabilised head that provides exceptional stability and smooth movement in all directions. It can be mounted in any orientation and maintains a level horizon under high G-forces, even with long lenses. The Evo ensures true nodal positioning for most camera packages and offers 360° continuous roll. With no need for a levelling head, it allows for quick mounting on all setups. It supports a wide range of payloads and accommodates 4” and 6” yoke extensions for even longer camera packages.
Operational Modes
Precise control over the gimbal’s pan, tilt, and roll axes, allowing for smooth, accurate movements and fine-tuned adjustments during both static and dynamic shots.
The handheld kit features an external gyro that allows the operator to control the gimbal like a traditional shoulder-mounted camera. It mirrors the operator’s movements, offering intuitive, responsive control for dynamic, handheld shots.
The Pan Bar allows the operator to control the gimbal like a traditional fluid head, providing precise pan, tilt, and roll adjustments for smooth, stable shots from a distance.
The joystick offers intuitive control over the gimbal’s pan, tilt, and roll axes, allowing the operator to make smooth, responsive adjustments.
Optional Extras

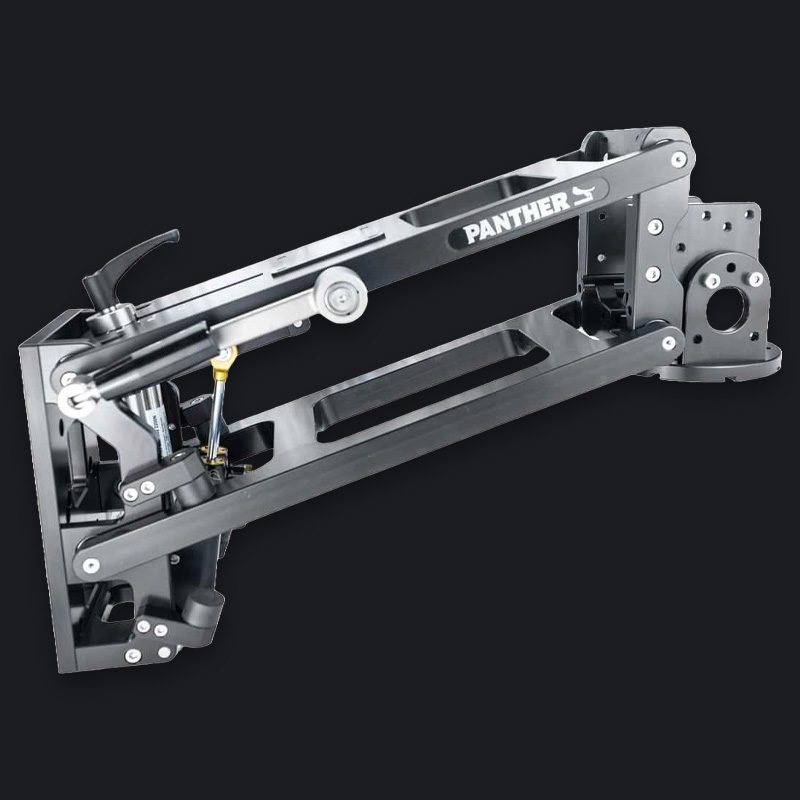

Our range of spring rigs are designed to stabilize lateral movement, delivering smooth, controlled motion in dynamic shooting environments, such as tracking vehicles.
The Levelling Head by Gyro Motion: A crane levelling head that can also use its high-power actuator to quickly and seamlessly move the gimbal between Underslung, Overslung, and Matrix positions.
Service Vision Levelling Head: A crane levelling head that can quickly and seamlessly move the gimbal between Underslung, Overslung, and Matrix positions.
Replaces the cranes levelling head, allowing the gimbal to quickly and switch between Underslung, Overslung, and Matrix positions.
We offer a range of wireless video solutions that provide reliable, high-quality transmission for seamless on-set monitoring.
The Preston wireless lens control system allows focus pullers to remotely control focus, iris, and zoom, offering precise and reliable adjustments over a long distance.
Features
- Gimbal always maintains correct polarity of the control axes regardless of the orientation of the mounting point.
- 4-axis design eliminates gimbal lock in any orientation.
High stabilization accuracy provides excellent stable picture. - No limitation 360-degree continuous pan, tilt and roll control.
- Programmable limits, tilt safety limits, auto reverse of tilt control direction.
- Eliminates need for a levelling head.
- Quickly accepts larger cameras with 4” & 6” yoke extensions.
- Built in platform to supply camera power.
- Rigs to Mitchell mount with dovetail for quick gimble removal.
- Motion recording and playback.
CONFIGURATION
Underslung
The head is mounted under the rigged platform allowing for low-angle shots that are close to the ground.
Overslung
The head is mounted above the rigged platform for added lens hight.
Matrix Mode
The head is mounted at a 90-degree angle to the rigged platform, allowing for easier access to tight spaces and enabling continuous roll movement for dynamic shots.
